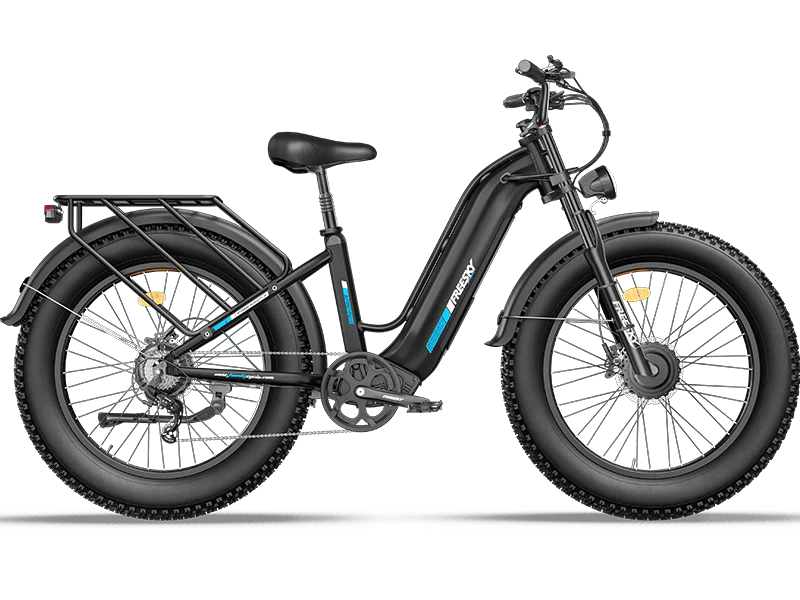

Double the traction. Double the fun. The FREESKY Ranger Air M-540 packs dual hub motors—1750W + 1750W peak (up to 200 N·m combined)—with a high-capacity 48V 25Ah battery for huge torque and range. Cruise up to 38 mph (PAS/throttle, where legal) and ride ~60–95 miles per charge in single-motor mode (about 40–60 miles in AWD). A step-thru frame, 4-piston hydraulic brakes, and 26×4.0" fat tires make it confident on city streets, sand, snow, and trails.
Why you’ll love it
- Real AWD control: Bar switch toggles front, rear, or dual-motor drive for grip on any surface. Each motor delivers 100 N·m torque.
- Big battery, big range: 48V 25Ah pack with modern BMS—rated 60–95 mi (single motor).
- Sure stopping: 4-piston hydraulic disc brakes with 180 mm rotors for composed, repeatable braking.
- Comfort & control: Suspension setup with a downhill-style front fork, plus 26×4.0" fat tires for stability and float.
- Safety-minded: Drive system listed as UL 2849 and battery listed as UL 2271 on the product page.
- Easy to ride: Step-thru access, color LCD, thumb throttle, and 0–5 PAS levels.
Quick specs
| Motors | Dual hub, 1750W + 1750W peak (3500W peak total), ~200 N·m combined; bar-selectable F/R/AWD |
| Battery | 48V 25Ah lithium; UL2271 noted on page |
| Top Speed | Up to 38 mph (PAS/throttle); ships speed-limited by default |
| Range | 60–95 mi single-motor • 40–60 mi dual-motor (conditions dependent) |
| Controller / Charger | 48V 30A controller • 3A smart charger (≈8 hrs) |
| PAS / Throttle | 0–5 PAS levels • Speed sensor • Thumb throttle |
| Brakes | 4-piston hydraulic discs • 180 mm rotors |
| Tires | 26×4.0" fat tires |
| Display | Color LCD |
| Frame | Step-thru 6061 aluminum • E-bike weight ~95 lb |
| Drivetrain | Shimano 7-speed derailleur |
| Load / Fit | Max load 400 lb • Rider heights 5'4"–6'8" |
Key specifications and claims (motors/torque, battery, speed, range, brakes, tires, weight, load, fit) are from the Ranger M-540 product page.
Geometry (reference)
- Total length: 76" • Wheelbase: 47" • Total height: 46"
- Seat height: 34"–39" • Step-thru height: 18"
Geometry values listed under “Data” on the product page.
What’s included
- Ranger M-540 dual-motor e-bike (step-thru)
- 48V 25Ah battery • 48V 3A charger
- Color LCD • Integrated lighting (incl. handlebar turn signals)
- Owner’s manual & basic tool kit
Inclusions referenced in Features/Technical Specification sections.
Notes: Real-world range depends on rider weight, terrain, temperature, speed, and drive mode (single vs dual). Bike ships speed-limited by default to comply with local e-bike rules; unlocking higher speeds may require additional licensing and is jurisdiction-dependent.
