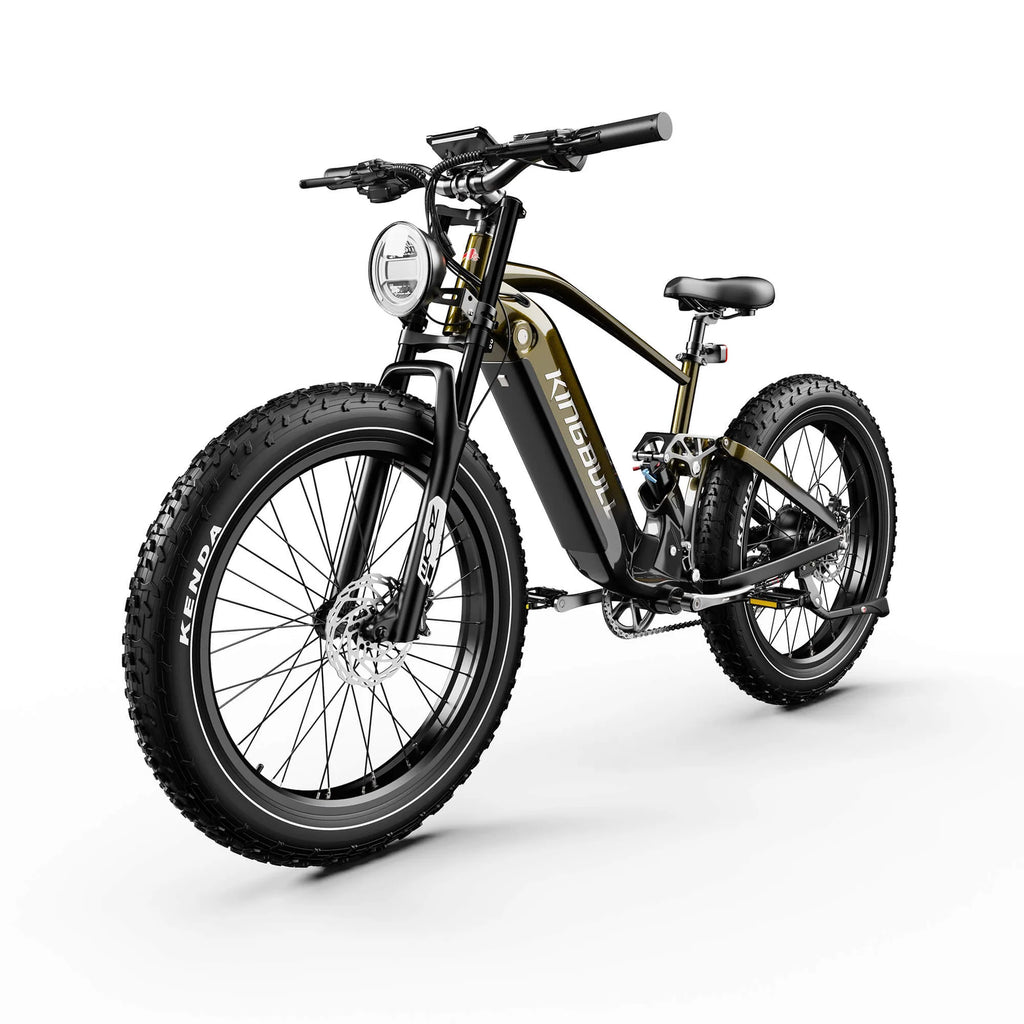

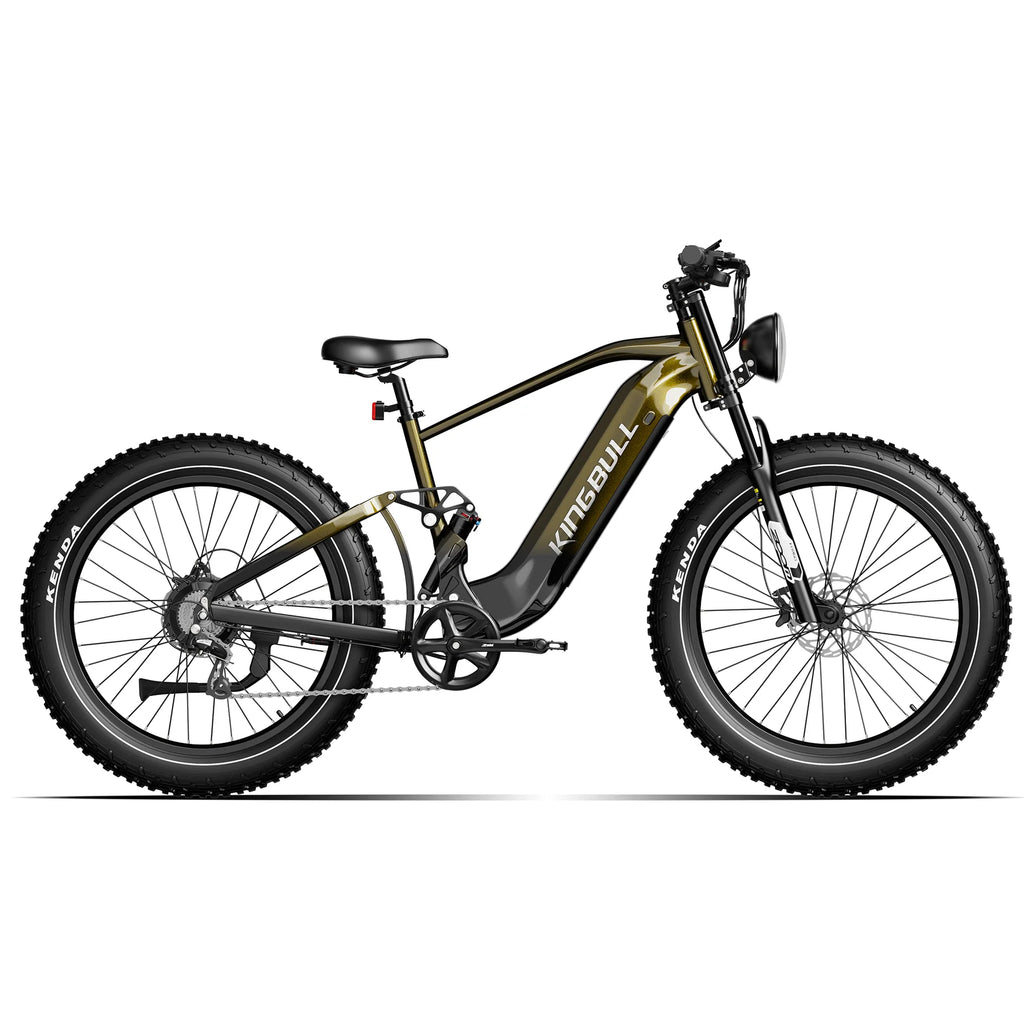

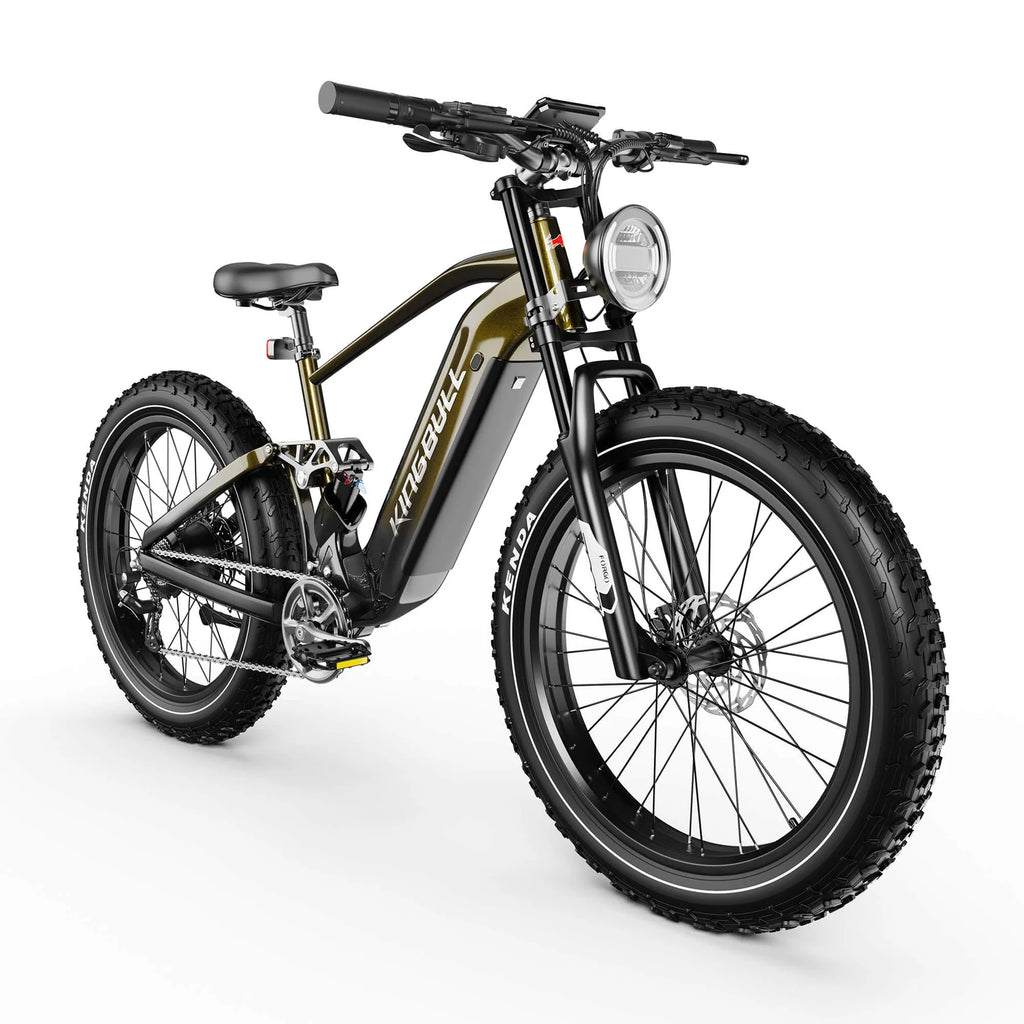

Go bigger. Ride smoother. The Kingbull EX Titan is a full-suspension, fat-tire e-MTB built to charge rough trails and cruise city streets alike. A Bafang G062 750W hub motor (up to 80 Nm torque) paired with a long-range Samsung 48V 20Ah (960Wh) battery and a responsive torque sensor delivers natural, confident power. With a 100 mm suspension fork, 130 mm rear travel, Tektro 4-piston hydraulics, and 26×4.0" Kenda tires, EX Titan turns chunky terrain into pure fun.
Why you’ll love it
- Serious power, silky control: Bafang 750W hub motor with up to 80 Nm torque + torque sensor for smooth, intuitive assist.
- All-day range: Samsung 960Wh battery for up to 80 miles per charge (use dependent).
- True full-suspension: ZOOM 879DH coil fork (100 mm) + DNM AO-38RC air shock (rear 130 mm travel) for control on rock, root, and ruts.
- Confident stopping: Tektro HD-E3940 hydraulic brakes with 4 pistons and 180 mm rotors.
- Trail-taming traction: Puncture-resistant Kenda 26×4.0" fat tires.
- Class-ready: Default Class 3 with PAS up to 28 mph; switchable to Class 2 where needed.
- Built to haul: 450 lb max payload with a rear rack rated to 150 lb.
- Turn-key equipped: Color LCD (KB35H), twist throttle, integrated 48V headlight w/ horn & tail light (brake highlight), and fenders.
Quick specs
| Motor | Bafang G062 750W brushless rear-hub (up to 80 Nm) |
| Battery | Samsung 48V 20Ah (960Wh) removable |
| Sensor | TROG-1B torque sensor + brake sensor |
| Controller | 48V / 25A |
| Top Speed | Up to 28 mph PAS (Class 3); adjustable to Class 2 |
| Range | Up to 80 miles per charge |
| Suspension | ZOOM 879DH front (coil, 100 mm) + DNM AO-38RC rear (air, 130 mm system travel) |
| Drivetrain | Shimano 8-speed (SL-M315 shifter / RD-M310 derailleur) + DNP 13–32T cassette, 42T chainring |
| Brakes | Tektro HD-E3940 hydraulic, 4-piston, 180 mm rotors |
| Wheels & Tires | 26×4.0" Kenda K-1188 puncture-resistant tires; JP73 alloy rims |
| Display | KB35H color LCD |
| Throttle | Twist throttle |
| Lighting | Integrated 48V LED headlight w/ horn & tail light (brake highlight) |
| Payload | Max 450 lb (rear rack up to 150 lb) |
| Bike Weight | Approx. 84 lb |
| Rider Fit | Best for riders 5'6"–6'7" |
What’s included
- EX Titan full-suspension e-bike (with fenders)
- Samsung 48V 20Ah removable battery
- UL-certified 3.0A charger
- Integrated 48V headlight & tail light
- Owner’s manuals
Assembly & support
Bike ships 85% pre-assembled (electronics pre-installed); basic final steps required. Ships from California within 2 business days; typical delivery is 2–5 business days after processing. Taxes included in price.
Note: E-bike laws vary by location. Check local regulations regarding Class 2/3 operation and speed settings.
